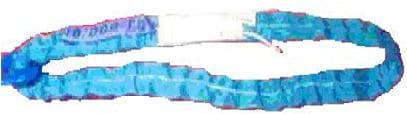

SYNTHETIC® Regular (Single Path Polyester Round Sling) Code - SR

General Description

SLINGSET Round Slings are fabricated from a 100% Polyester yarns, wound continuously together in the form of an endless sling. The yard is protected by 100% polyester non load bearing tubular sleeve.

PERFORMANCE : The outer sleeve, being entirely non-load bearing, serves both to protect & consolidate the polyester core yarn. The Round Sling flattens in use to provide a safe grip on the load. The unique monofilament weft gives longer service life due to greater resistance to wear & damage.

SAFETY : The SLINGSET Round Slings is extremely light in weight and, even when dropped from a considerable height is most unlikely to cause injuries. Similarly when swinging from a crane hook it will not cause the kind of head injuries commonly associated with heavier, traditional lifting tackle. Having no metal components or splices, etc Round Sling will not cause any injuries to personnel. The SLINGSET Round Slings has an elongation of only 3% at the Working Load Limit and 10 to 13% elongation at break.

---

SLINGSET® Webbing Sling (Single Path Eye & Eye Sling) Code - SW

General Description

SLINGSET Flat Webbing Slings are fabricated from a single length 100% polyester webbing, Slings ends are terminated either in a reinforced loop or in any combination of end fittings.

PERFORMANCE : SLINGSET Webbing Slings offer a wide, flat, load bearing surface which is particularly valuable when lifting objects with soft spots. Since there is no metal contact, the risk of damage to smooth or painted surfaces is negligible.

SAFETY : The SLINGSET Webbing Slings is extremely light in weight and, even when dropped from a considerable height is most unlikely to cause injuries. Similarly when swinging from a crane hook it will not cause the kind of head injuries commonly associated with heavier, traditional lifting tackle. Having no metal components or splices, etc Round Sling will not cause any injuries to personnel. The SLINGSET Round Slings has an elongation of only 2 - 5% at the Working Load Limit and 15 to 20% elongation at break.

---

SLINGSET®- Twin Path® (Polyester Round Sling with Double Cover) Code - STP

Features

Patented product having 2 separate continuous paths of load bearing yarns. One path can be cut or damaged and the other path can still hold the load

Double cover / tubing for yarn protection

Over load indicator for indication of Sling overloading

Fibre Optic Cable for internal indication of Sling condition

Capacity available from 1 ton to 40 tons (with Polyester)

Double Cover making the Sling repairable

---

SLINGSET® Twin Path® Eye & Eye (World's most ergonomically designed Sling) Code - STPE

Features

Combines the best features of a Webbing and Twin Path Round Sling

Flat Load bearing surface for better contact

Since there is no metal contact, the risk of damage to smooth or painted surfaces is negligible

All the features of STP mentioned above are available

---

SLINGSET ®- Twin Path® Plus (K-Spec Fiber) Code STP+ & STPE+

Features

Patented K-Spec (Kevlar Spectra) fiber used instead of Polyester for core yarn

K-Spec fiber is only 20% the weight of polyester and only 5 % the weight of steel

K-Spec fiber has stretch equivalent to steel and ideal for applications where low-elasticity is important

Capacity of 1MT to 300MT SWL

Overload indicators (tell - tails)

Available in both Twin Path Round & Eye & Eye Slings with all standard features

---

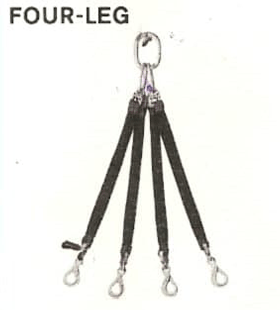

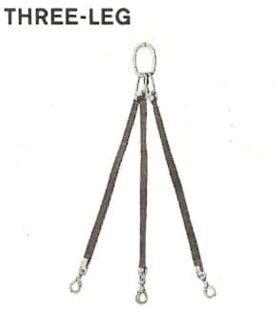

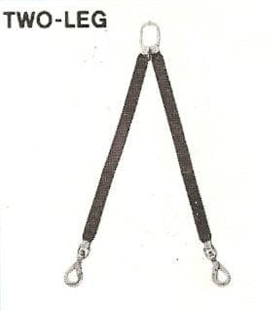

SLINGSET®Multi-Legged (Slings ideal for lifting large objects with multiple lifting points and an assymetrical center of gravity) Code SM

General Description

SLINGSET Multi-Leg Slings are manufactured using either Roundslings or Duplex Webbing slings, depending upon the type and the Safe Working Load.

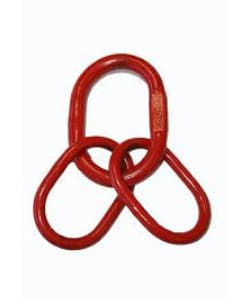

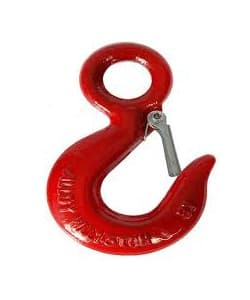

Hooks, masterlinks & auxiliary links are manufactured from quenched & tempered alloy steel.

Duplex Slings are stitched directly onto the metal components, Roundslings being attached via auxiliary links.

All Roundslings are fitted with protective sleeving & anti-abrasion or anti-cutting protection can also be specspecified as required.

Please note that futher information on the general performance, specification, safety in use & maintenance of these products is covered in more detail in the sections on Roundslings or Webbing Slings.

Safe Working Load Angles

The Safe Working Load values quoted in the tables have been rated using the uniform load method for a maximum angle for each leg of 45 degrees from the vertical, as shown in the diagrams.

Slings may be rated at greater angles if required, please SLINGSET for further details.

The textile elementa of these Slings have a minimum safety factor of 7:1 & the metal elements a sefety factor of 3:1.

All Slings are serialised & issued with a test certificate.
