QUICK FIT HYDRAULIC & PNEUMATIC - QUICK RELEASE COUPLINGS

Applications

QUICK FIT Camlok Couplings can be used in various industries such as, Fertilizers, Chemicals, Petroliums, Textiles, Minings, Brewings, Inks, Dyes, Paper Mills, Processing Plant. Etc.

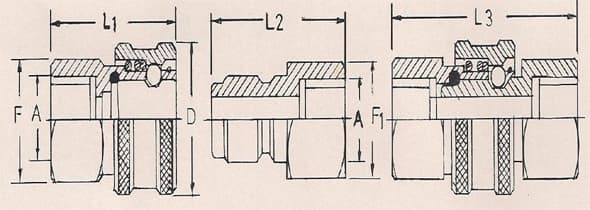

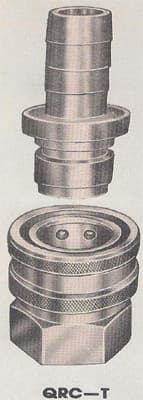

Dimensional details of QRC-T (Through Type)

Sr. no	Size	Type	A	B in mm	F in mm	F1 in mm	L1 in mm	L2 in mm	L in mm	Working Pressure PSI
1	1/8"	QRC-T1	1/8"BSP	18	14	14	31	32	37	500
2	1/4"	QRC-T2	1/4"BSP	28	22	19	39	40	57	500
3	3/8"	QRC-T3	3/8"BSP	32	25	22	41	42	60	500
4	1/2"	QRC-T4	1/2"BSP	35	28	28	44	47	66	500
5	3/4"	QRC-T5	3/4"BSP	42	40	32	54	52	78	500
6	1"	QRC-T6	1"BSP	50	45	40	57	60	85	500
7	1 1/4"	QRC-T7	1 1/4"BSP	60	55	50	62	65	93	500
8	1 1/2"	QRC-T8	1 1/2"BSP	70	57	57	66	68	97	500
9	2"	QRC-T9	2"BSP	88	72	69	77	78	110	500

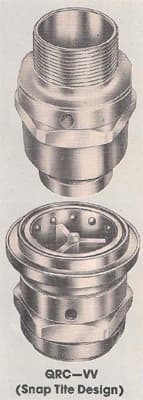

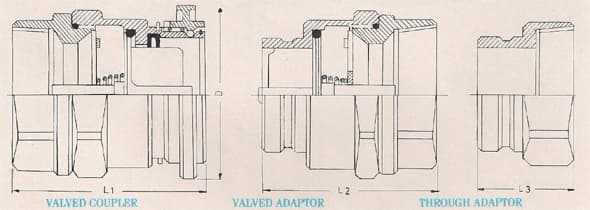

Dimensional details of QRC-VV (Double check valve)

Double Check Valve - DCV
Single Check Valve - SCV
Diameter - D

Sr. no	Size	DCV Length L1 in mm	DCV Length L2 in mm	DCV Max D in mm	DCV Assembly length in mm	SCV Length L1 in mm	SCV Length L3 in mm	SCV Max D in mm	SCV Assembly length in mm
1	1"	83	84	53	145	83	49	53	110
2	2"	111	107	100	186	111	61	100	140
3	3"	144	136	143	245	144	75	143	177
4	4"	188	180	179	320	188	92	179	234

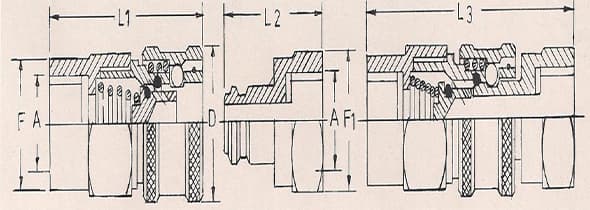

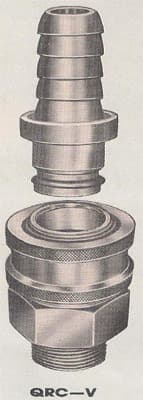

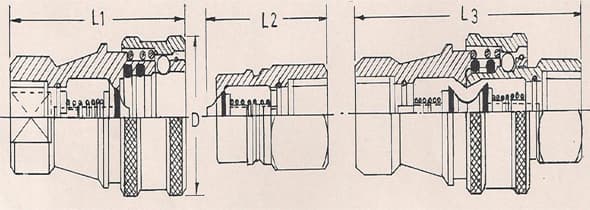

Dimensional details of Single Check Valve QRC-V (Single check valve) p-category

Sr. no	Size	Type	A	B in mm	F in mm	F1 in mm	L1 in mm	L2 in mm	L3 in mm	Working Pressure PSI
1	1/8"	QRC-V1	1/8"BSP	19	16	14	41	27	54	500
2	1/4"	QRC-V2	1/4"BSP	24	21	19	53	33	70	500
3	3/8"	QRC-V3	3/8"BSP	24	22	22	55	35	73	500
4	1/2"	QRC-V4	1/2"BSP	34	28	28	68	42	89	500
5	3/4"	QRC-V5	3/4"BSP	40	35	32	83	46	107	500
6	1"	QRC-V6	1"BSP	42	50	40	84	50	111	500
7	1 1/4"	QRC-V7	1 1/4"BSP	49	50	50	89	54	120	500

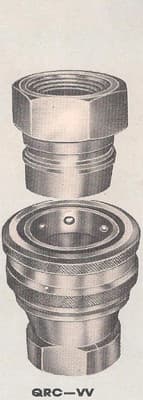

Dimensional details of Double Check Valve QRC-VV (Double check valve) p-category

Sr. no	Size	Type	C L1 in mm	A L2 in mm	C + A in mm	Max D in mm	Working Pressure PSI	Testing Pressure PSI
1	1/8"	QRC-VV1	44	33	58	23	4000	6000
2	1/4"	QRC-VV2	58	40	72	32	4000	6000
3	3/8"	QRC-VV3	66	46	80	38	4000	6000
4	1/2"	QRC-VV4	71	50	90	44	3500	5000
5	3/4"	QRC-VV5	77	55	98	48	3000	4500
6	1"	QRC-VV6	85	63	112	58	3000	4500
7	1 1/4"	QRC-VV7	94	65	120	72	2000	3000
8	1 1/2"	QRC-VV8	113	80	144	89	2000	3000
9	2"	QRC-VV9	127	88	152	108	1000	2000

QUICK FIT Quick Release Couplings

Design Principle : The principle behind the design of QUICK FIT QRC is simple PUSH & PULL. The Adapter when pushed into the Coupler is securely held by the self locking arrangement resulting in a positive & leak proof connection. This action simultaneously open the valve & the fluid start. To disconnect, pull back the sleeve of the coupler, the adapter ejects out & the valve shuts off automatically.

Quick Fit QRC, are manufactured from selected raw material under strict quality control

Material

Body :
a) Available in Carbon Steel, Brass(from Bar Sock & Chromium Plated)
b) Available in Aluminium, SS 304 , SS 316, SS 316L(from Bar Stock Only)

Spring: Available in Spring Steel SS 304 and SS 316

Ball: Available in Steel SS 304, SS 316 and SS 316L

Seal: Nitrile, Viton, Neoprene, Silicon, Hypalon and other grade seal

End Connection : Socket Weld, Hose Thread, Pipe Thread, Hose Shank and Flanged

Types : V V- Double Check Valve / V - Single Check Valve / T- Without Check Valve

Size : 1/8" (3 mm) to 4" (100 mm) depening on Type and Material

Standard Working Pressure for QUICK FIT QRC

20Kgs./CM2 or 300 PSI

35Kgs./CM2 or 500 PSI

70Kgs./CM2 or 1000 PSI

205Kgs./CM2 or 3000 PSI

275Kgs./CM2 or 4000 PSI

350Kgs./CM2 or 5000 PSI

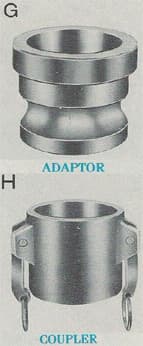

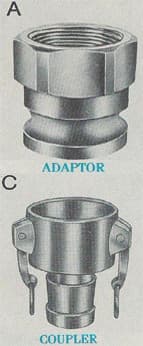

QUICK FIT HYDRAULIC & PNEUMATIC - CAMLOCK COUPLINGS

Applications

Fertilizers, Chemicals, Petroliums, Minings, Textiles, Paints, Pharmaceuticals, Brewings, Ink & Dyes Industries, Paper Mill Processing Plants, Refineries, Power Plants, etc.

Design Principle

The principal behind the design of Quick Fit Camlok is Simple Pivot pins for Coupler Cam arm whch lock into the adapter, grove are located so that when line pressure attempts to force the Camlok apart , the locking action . When properly connected, line pressure will not separate a Camlok with recommended pressure limit.

Quick Fit Camlock are manufactured from selected raw meterial under strict quality control

Material body

Available in solid bar stock of Aluminium , Mild Steel,Brass, ss 304 & ss 316

Available in casting of Carbon Steel Grade WCB or l.S. 1030, Gunmetal Grade LG2C, Aluminium & Bronze Grade AB2C, SS 304 with c.f.0.08 & SS 316 c.f.0.08.

Cam Arms

Available in castings of SS 304, with c.f.0.08, SS 316 with c.f. 0. 08 Gunmetal Grade LG2C & Aluminium & Bronz Grade AB2C

Seals : Available in Nitrile, Viton, Neoprene, Silicon, Hypalon and other high grade seal.

End connection : Socket weld, Hose Thread, Pipe Thread, Hose Shank and Flanged.

Size : 1/2" to 6" depending on Type and Material

Working Pressure : For 1/2" to 2" - 500 PSI/ 3" to 4" - 200 PSI/5" to 6" -100 PSI

Temperature : The Couple can handle fluid from - 40 degree to +350 degree Centigrade with right selection of Body Material & seal

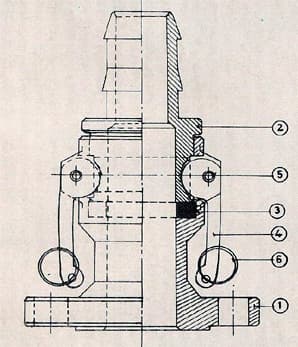

Sectional view of Camlock with parts details p-category

Sr. no	Description	Quantity
1	Coupler	1No
2	Adaptor	1No
3	Washer	1No
4	Cam Arm	2No
5	Cam Pin	2No
6	Cam Ring	2No

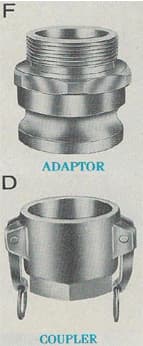

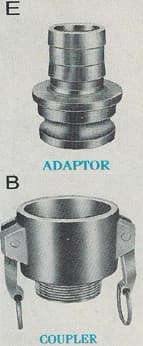

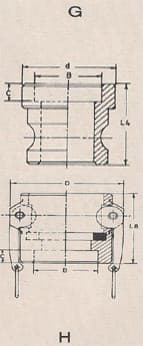

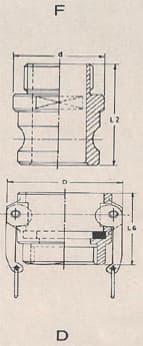

Dimensional Details & Section View

Sr. no	Size	L1 in mm	L2 in mm	L3 in mm	L4 in mm	L5 in mm	L6 in mm	L7 in mm	L8 in mm	D in mm	d in mm	H in mm	C in mm	B in mm
1	1/2"	73	54	48	42	53	53	77	46	58	35	14	9.5	21.0
2	3/4"	81	57	51	42	56	56	89	49	58	35	22	12.7	27.3
3	1"	88	62	57	48	60	60	90	51	60	38	28	12.7	34.0
4	1 1/2"	109	75	68	59	72	72	110	63	85	65	41	12.7	48.0
5	2"	131	81	80	69	79	80	131	70	95	72	52	16.0	61.3
6	2 1/2"	139	88	81	69	85	85	138	73	110	90	66	16	74.2
7	3"	160	91	87	75	87	87	160	75	135	105	79	16.0	90.2
8	4"	169	104	95	76	101	101	164	82	155	135	106	19.0	115.8
9	5"	191	104	95	76	101	101	188	82	194	162	130	-	-
10	6"	201	122	110	92	111	111	196	93	222	196	155	-	-
